iWALK Power Bank LPB5500PL User Guide
Walk Your Own Way

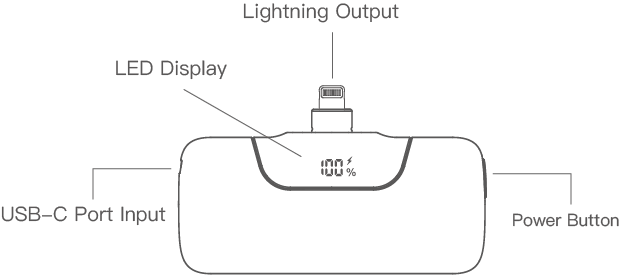

Product Introduction
Charging Your Phone or Device
Fully charge the product before first use
There are three output power modes switchable for portable power source.
- Once powering on, the default state of the product is express charging mode at up to 20W to meet the demand for quick
charging; - After powering on, double click to switch into output mode at up to 12W;
- After turning on the product, long-press button 3s to activate the Trickle-Charging mode. The power LED or display screen will start flashing. Click the button again to exit this mode.You can use Trickle-Charging mode to charge headphones or other low-power devices.
Recharge your LinkPod5
Pass-through Charging
The power bank can charge other devices while it is being charged.
Product Specifications
Product Name
LinkPod 5
Model No.
LPB5500PL
Lithium Battery Capacity
3.6V 5500mAh
Rated Energy
19.8Wh
Conversion Efficiency
60%
Rated Capacity
3300mAh(5V⎓2A)
USB-C Port Input
5V⎓3A,9V⎓2A
Lightning Output
5V⎓2.4A,9V⎓2.22A
Size
80x26.9x53mm
Weight
100g
Implemented Standard
GB 31241-2022；GB 4943.1-2022
