iWALK Power Bank LPR004C User Guide
Walk Your Own Way

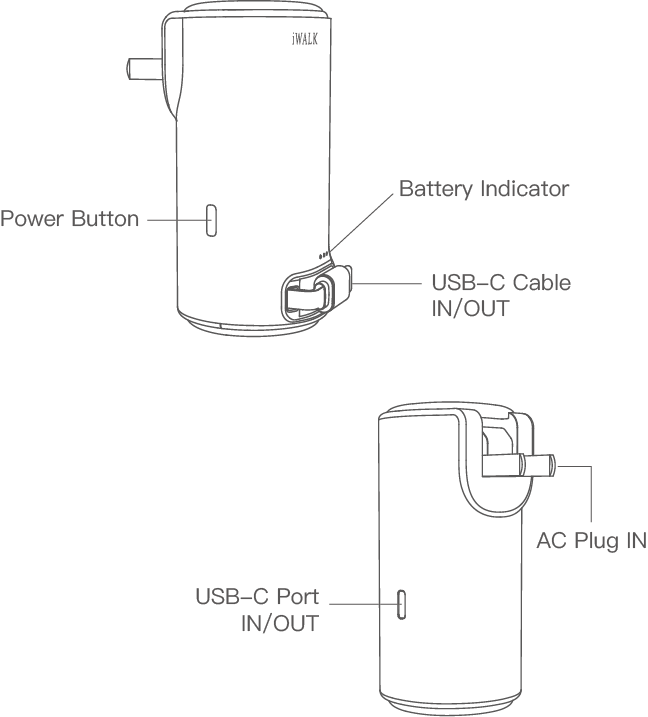

Product Introduction
Charge your phone ordevices
① Charging with Built-in Cables
② Charging with USB-C Port Output
Fully charge the product before first use
- You can use Trickle-Charging mode to charge low-power devices.
- After turning on the product, long-press
button 3s to activate the Trickle-Charging mode. The power LED or display screen will start flashing. Double-click the button again to exit this mode.
Recharge your LinkPod Reel AC5000
① Charging with AC Plug Input
② Charging with Built-in Cables
③ Charging with USB-C Port Input
Pass-through Charging
The power bank can charge other devices while it is being charged.
Product Specifications
Product Name
LinkPod Reel AC5000
Model No.
LPR004C
Capacity
18Wh(7.2V 2500mAh)
Rated Capacity
3000mAh(5V⎓1A)
Total Output
5V⎓3A
Charger mode
AC Input
AC Input
100-240V~50-60Hz 1.5A
USB-C Port/Cable Output
5V⎓3A,9V⎓3A,10V⎓2.25A,12V⎓2.5A,15V⎓2A,20V⎓1.5A
Battery mode
USB-C Port/Cable Input
USB-C Port/Cable Input
5V⎓3A,9V⎓2.22A,12V⎓1.67A
USB-C Port/Cable Output
5V⎓3A,9V⎓2.22A,10V⎓2.25A,12V⎓1.67A
Size
46.1x96.9x52.2mm
Weight
248g
Implemented Standard
GB 17625.1-2022 GB 4943.1-2022
GB/T 9254.1-2021 GB 31241-2022
GB/T 9254.1-2021 GB 31241-2022
