iWALK Power Bank LPR005C User Guide
Walk Your Own Way

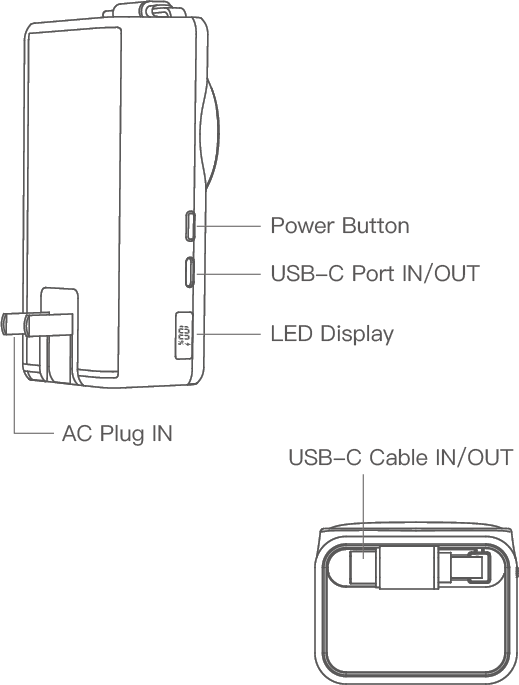

Product Introduction

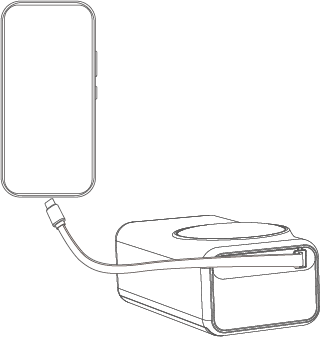

Charge your phone or devices
① Charging with Built-in Cables
② Charging with USB-C Port Output
Fully charge the product before first use
- You can use Trickle-Charging mode to charge low-power devices.
- After turning on the product, long-press
button 3s to activate the Trickle-Charging mode. The power LED or display screen will start flashing. Double-click the button again to exit this mode.

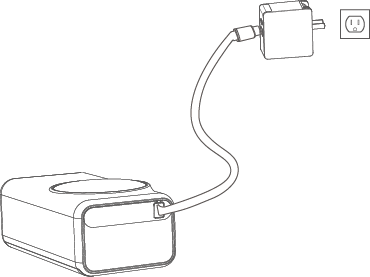

Recharge your LinkPod Reel AC10000
① Charging with AC Plug Input
② Charging with Built-in Cables
③ Charging with USB-C Port Input
Pass-through Charging
The power bank can charge other devices while it is being charged.
Product Specifications
Product Name
LinkPod Reel AC10000
Model No
LPR005C
Capacity
36Wh(7.2V 5000mAh)
Rated Capacity
6000mAh(5V⎓3A)
Total Output
15W Max(5V⎓3A)
Charger mode
AC Input
AC Input
100-240V~50-60Hz 1.5A
Battery mode
USB-C Port/Cable Output
USB-C Port/Cable Output
5V⎓3A,9V⎓3A,10V⎓2.25A,12V⎓2.5A,15V⎓2A,20V⎓1.5A
USB-C Port/Cable Input
5V⎓3A,9V⎓2.22A,12V⎓1.67A
USB-C Port/Cable Output
5V⎓3A,9V⎓3A,10V⎓2.25A,12V⎓2.5A,15V⎓2A,20V⎓1.5A
Size
52.3x115.3x41.7mm
Weight
272.7g
Implemented Standard
GB 17625.1-2022；GB 4943.1-2022
GB/T 9254.1-2021；GB 31241-2022
GB/T 9254.1-2021；GB 31241-2022
